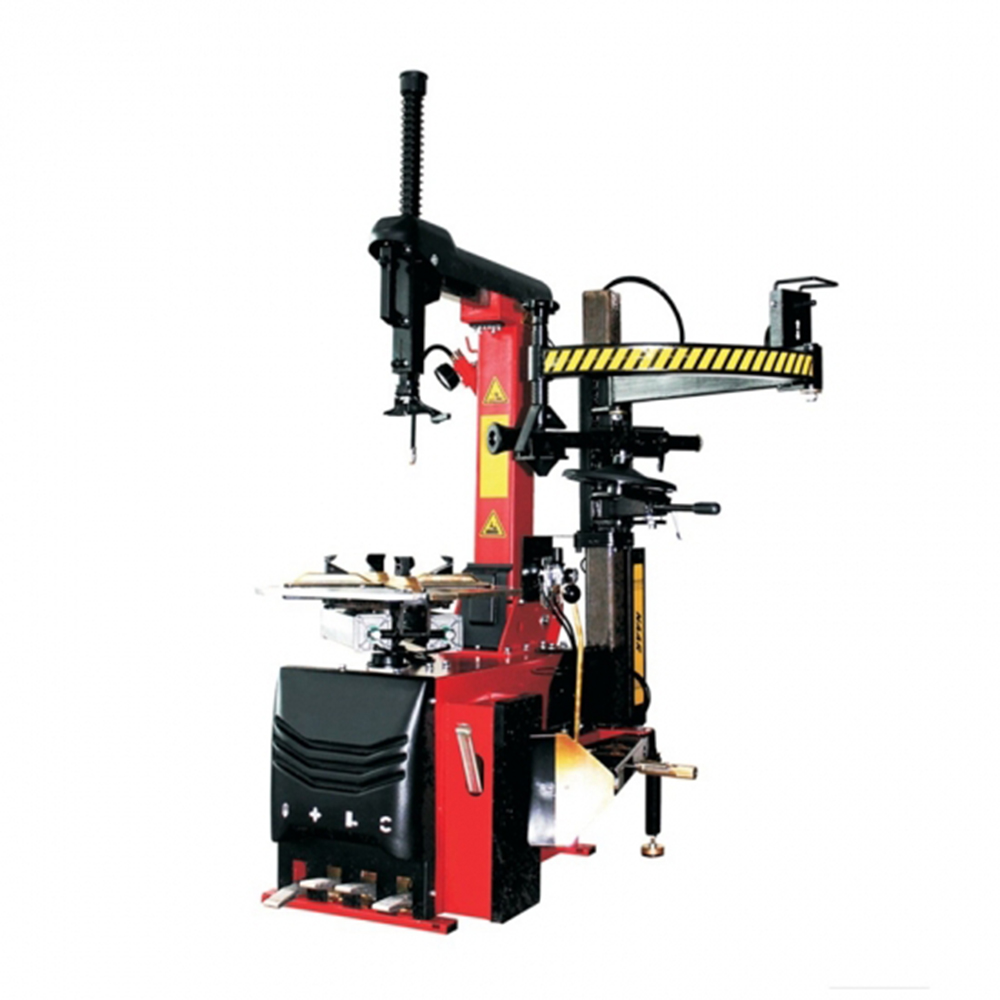

Ausland TCS502 Tire Changer
TCS502 Tire Changer Performance Characteristics
1.Pneumatic control, inverted, automatic positioning, pneumatic locking function.
2.The pneumatic tyre removing device can balance in any position to make the tire more convenient and convenient to be disassembled
3.360 degree rotary type tire press mechanical assistant and 24 inch enlarged square plate and high-power motor, suitable for dismounting bigger and wider new tyres
4.The lengthened extended right auxiliary arm system improves the coverage of the work, and the pneumatic control manipulator can be freely lifted, positioned and locked in any position
5.Portable combined sub tire device, suitable for any type of tyre
TCS502 Tire Changer Technical Parameter
Motor model: 0.75kw/0.55kw/1.1kw
Power requirements: 220V/400V/110V
Maximum tire diameter: 41 "(1040mm)
Outside lock diameter: 10 "-21""
Inner lock diameter: 12 "-24""
Pressure requirement: 8bar
Tyre pressure: 2500kg
Noise range <70dB
TCS502 Tire Changer Packing Size
Host: 960mm*760mm*930mm
Attachment: 1370mm*450mm*350mm
