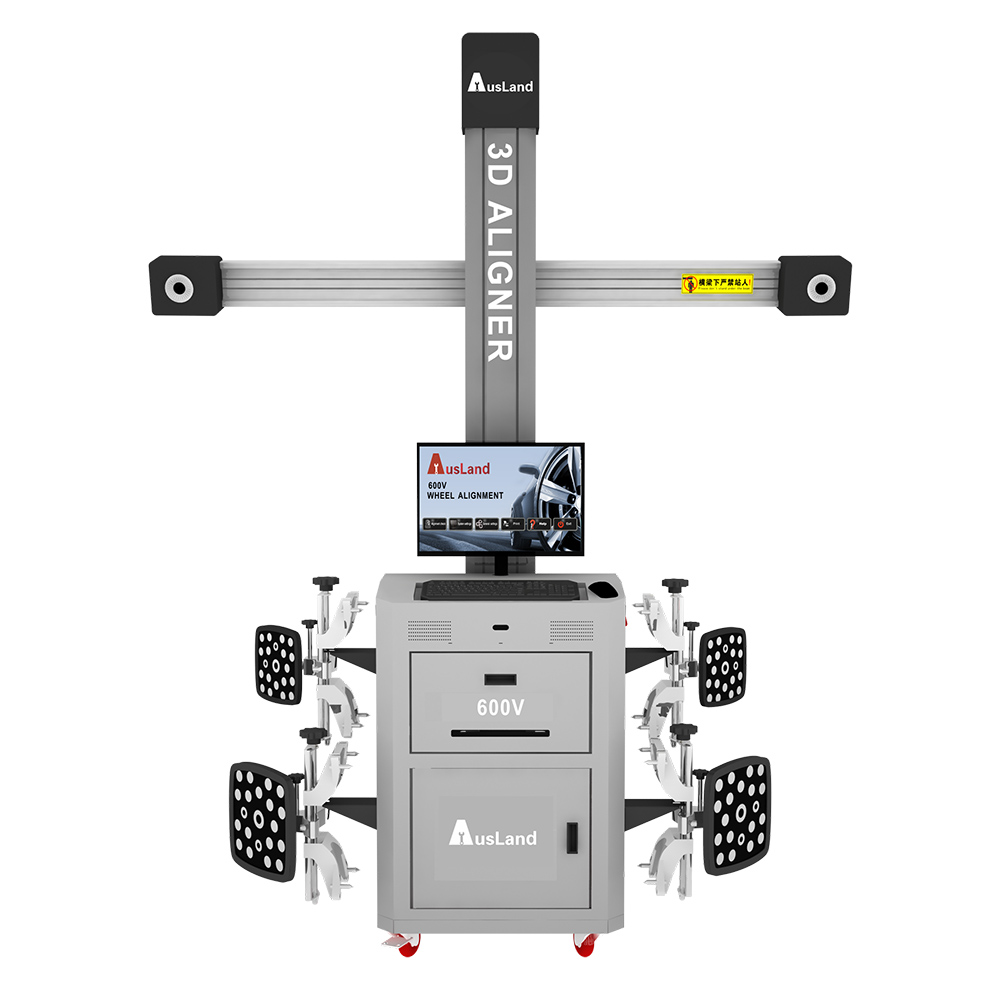

Ausland-600V MULTI-STATION MANUAL TRACKING 3D Wheel Aligner

Item No.:ADWA002

Weight NW:

Package:

Related Download Files:

GET GUOTES

Description

Ausland-600V is the latest 3D technology wheel aligner.It’s with dynamic constitute coordinate, not affected by the inclination of lift. It can perform wheel alignment at all height.

Specification

Item	Precision	Range
Front Total Toe-in:	±2’	±20°
Camber:	±2’	±20°
Caster:	±4’	±20°
SAI/KPI:	±6’	±20°
Setback:	±2’	±5°
Thread:	±2mm
Wheelbase:	±2mm

Features

Superiority on technology, have more than 7 specialist with ten years experience.

Independent intellectual property rights, hold invention and utility patents.

Dynamic constitute coordinate,no affected by the inclination of lift

No need to wait during rolling or caster swing, save test time .

Automatic calculate wheel diameter, no need to input manually

High precision anti- throwing target, reinforced plastic enclosure,laser fabrication

Reliable

Waterproof protected

Real-time check target picture

Perfect additional measurement

Industry best camera and optical system

Friendly interface, fast and stable search funtion

With unique quick testing mode, saving time and work efficiently

A wide range of wheel clamp,with10’’-24’’ solid & precision clamp

Specializing 3D wheel alignment R & D,more reliable ,more cost-effective
