Universal Cooling System Vacuum Purge Coolant Refill Kit For Cars And Trucks

TECHNICAL FEATURES:

1. Device for rapidly filling the cooling system of cars and trucks.

2. The system works by vacuum and allows a rapid and total filling of the cooling system without any need to start the vehicle several times during the filling operations.

3. Vacuum is generated using compressed air.

4. When a cooling system is filled with liquid, air bubbles are generated, and these must be completely eliminated.

5. Radiator fill suits both cars and lorries.

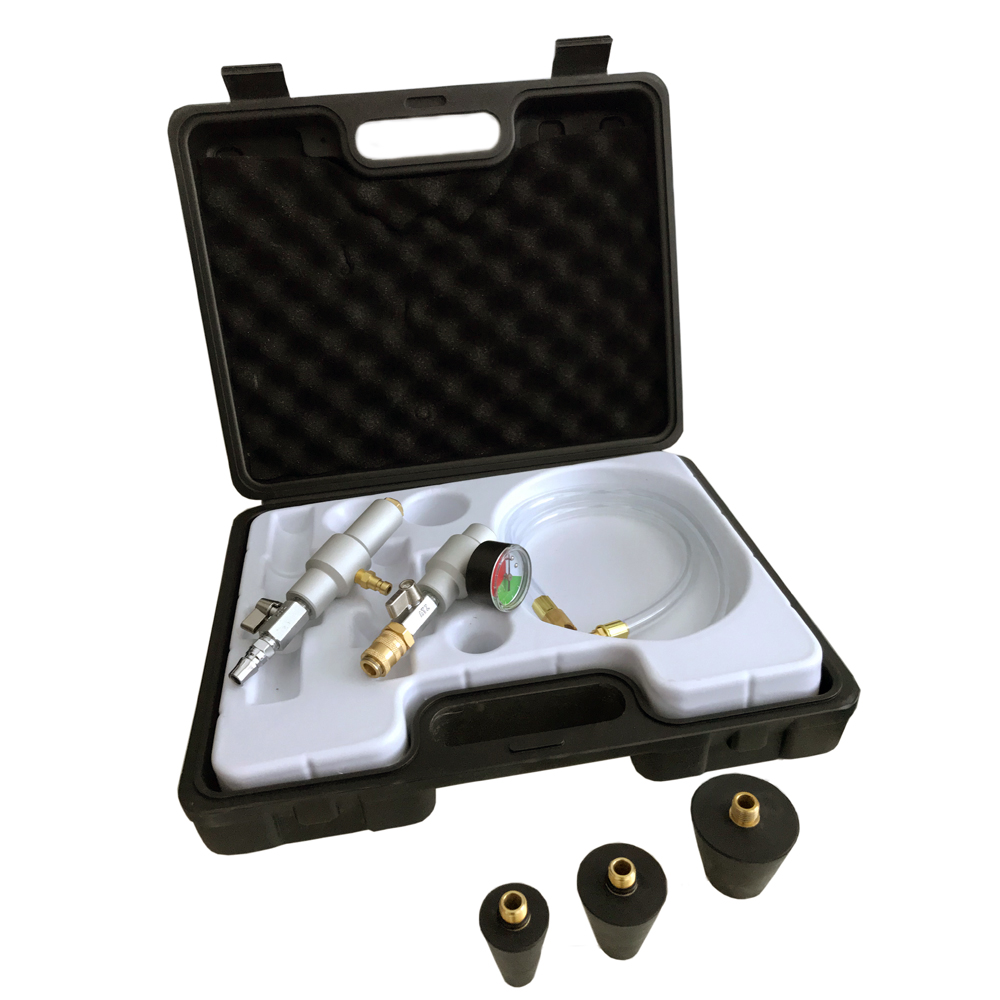

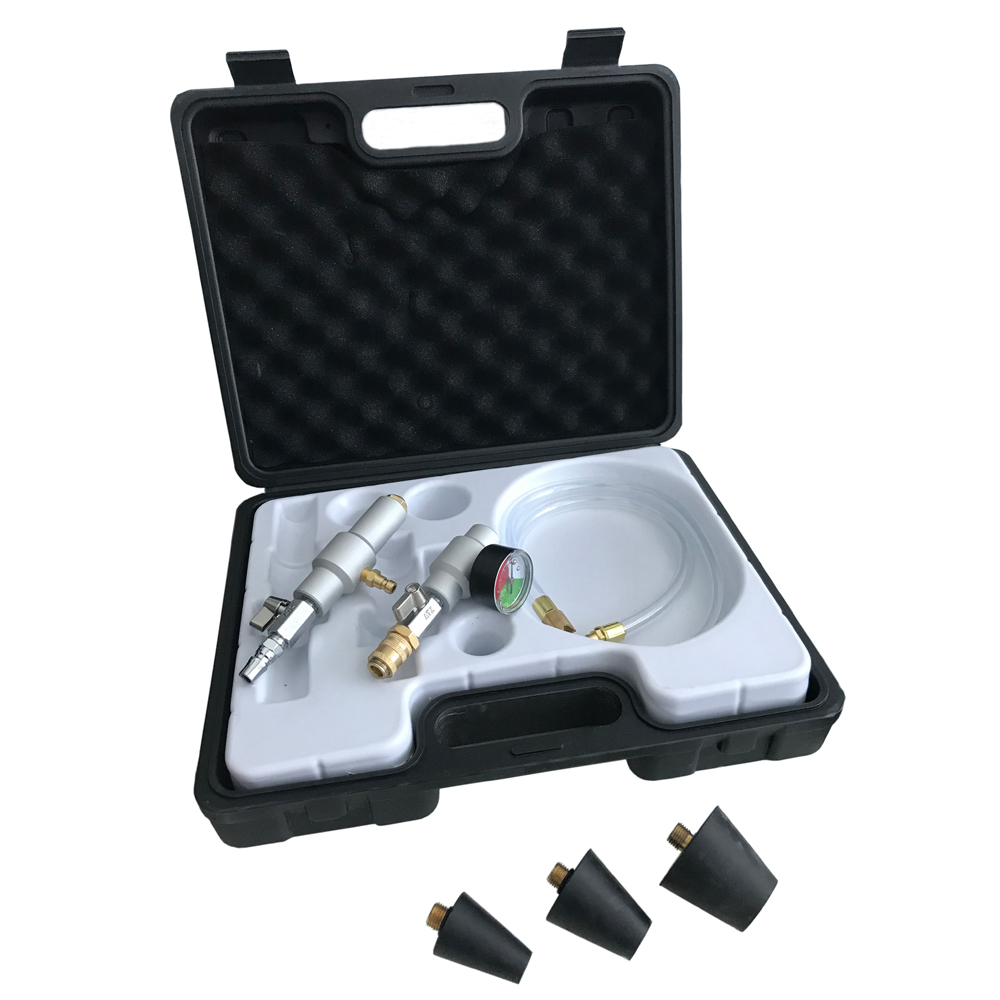

6. Together with the kit, 3 different size cones are supplied to fit different radiators. The device works on a system previously freed from any liquid, and allows also tightness test.

TECHNICAL DATA:

- Working pressure from 5,5 to 12,0 bar.

- Max air use 100 l/min at 6 bar.

- Air connection 1/4”F.

- Temperature from -20° to +50°C.

- Adapters: Ø16 - 33mm; Ø23 - 41mm; Ø34 - 52mm.
