Condor Dolphin Version: Update Online
V1.1.3(2019-5-03)
This version need to update firmware
Fix HU101 tall cutting error problem
Fix HU83 tail cutting error problem
Fix Channel Track type key cutting error problem
Add use standard key width cutting option

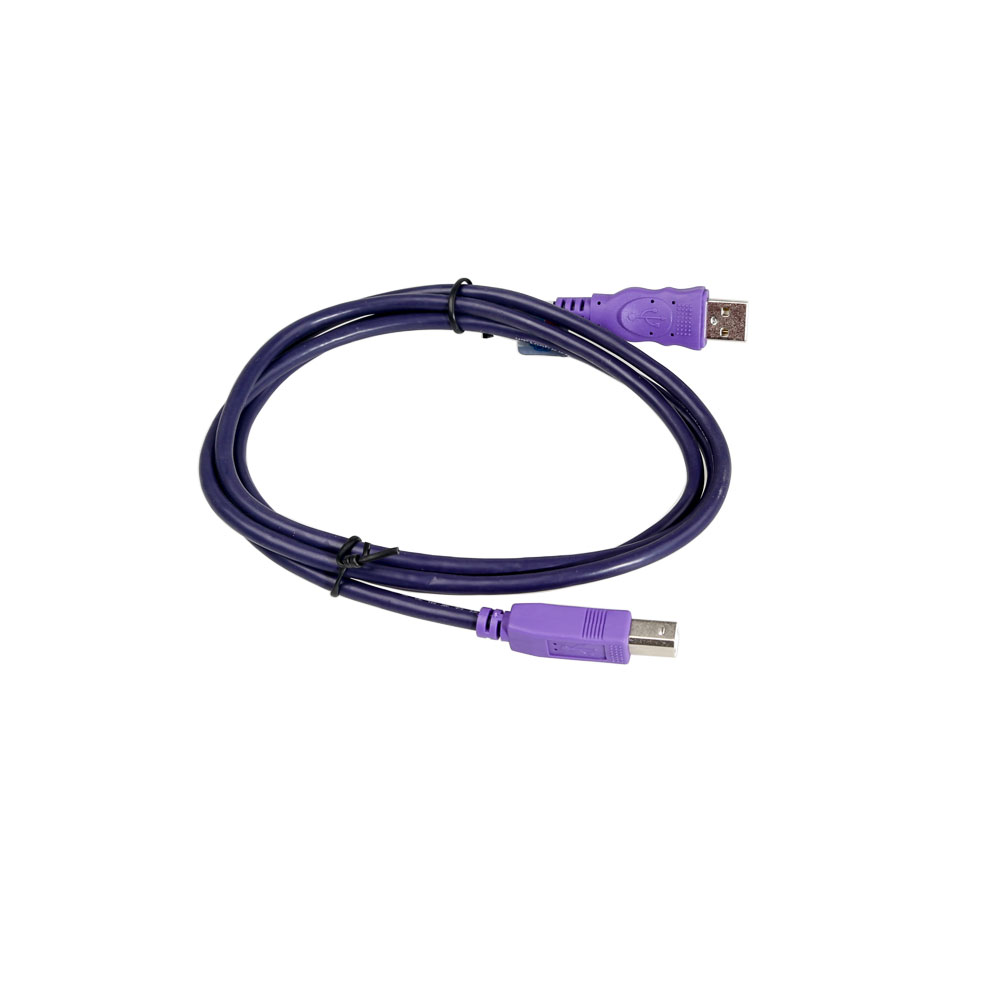

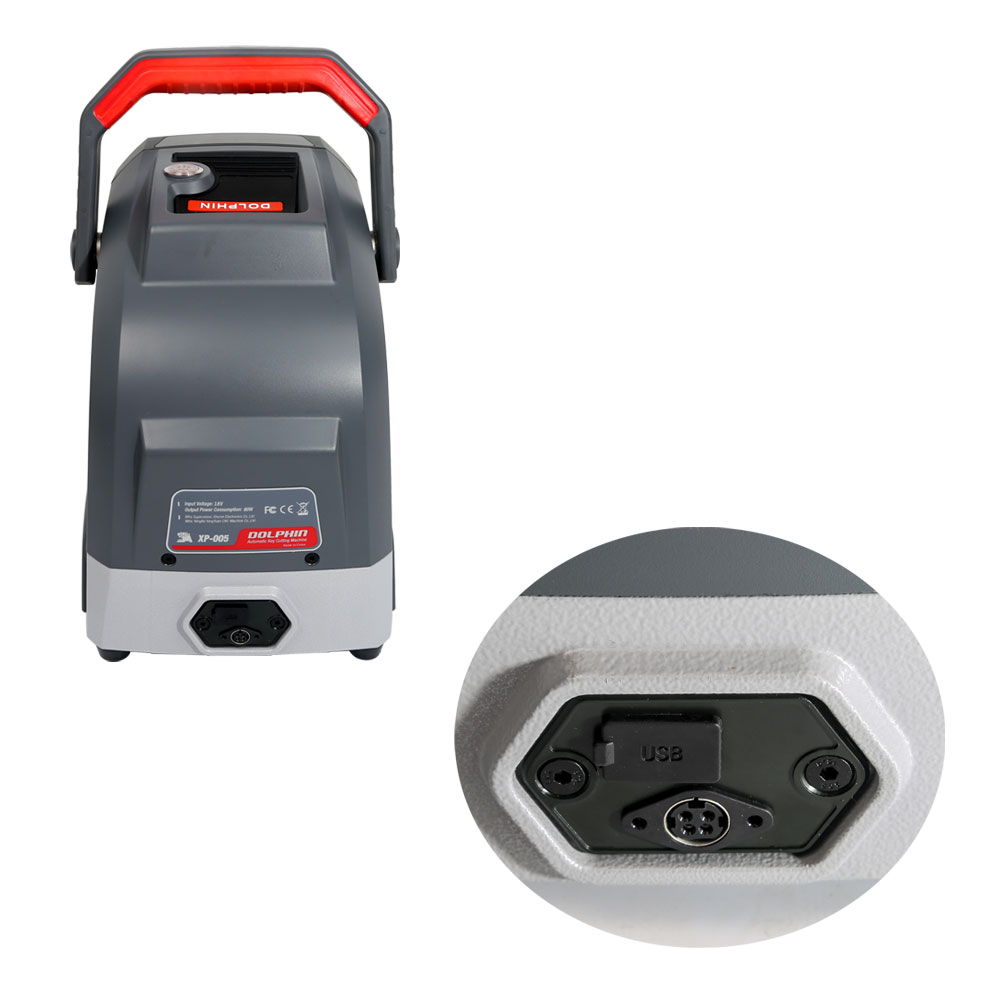

Support jumping to the BIOS function when insert USB cable after Dolphin starting up
V1.1.2(2019-4-24)
This version need to update firmware
Fix some key with M2-A or M2-D cannot cutting problem
v1.0.7(2018-12-27)
This version need to update firmware
Fix for universal type key cutting reboot issue
Fix battery indicator incorrect display issue
Optimize prompts
Add M3 clamp key cutting
Add cutting key according to decode actual data from original key function.

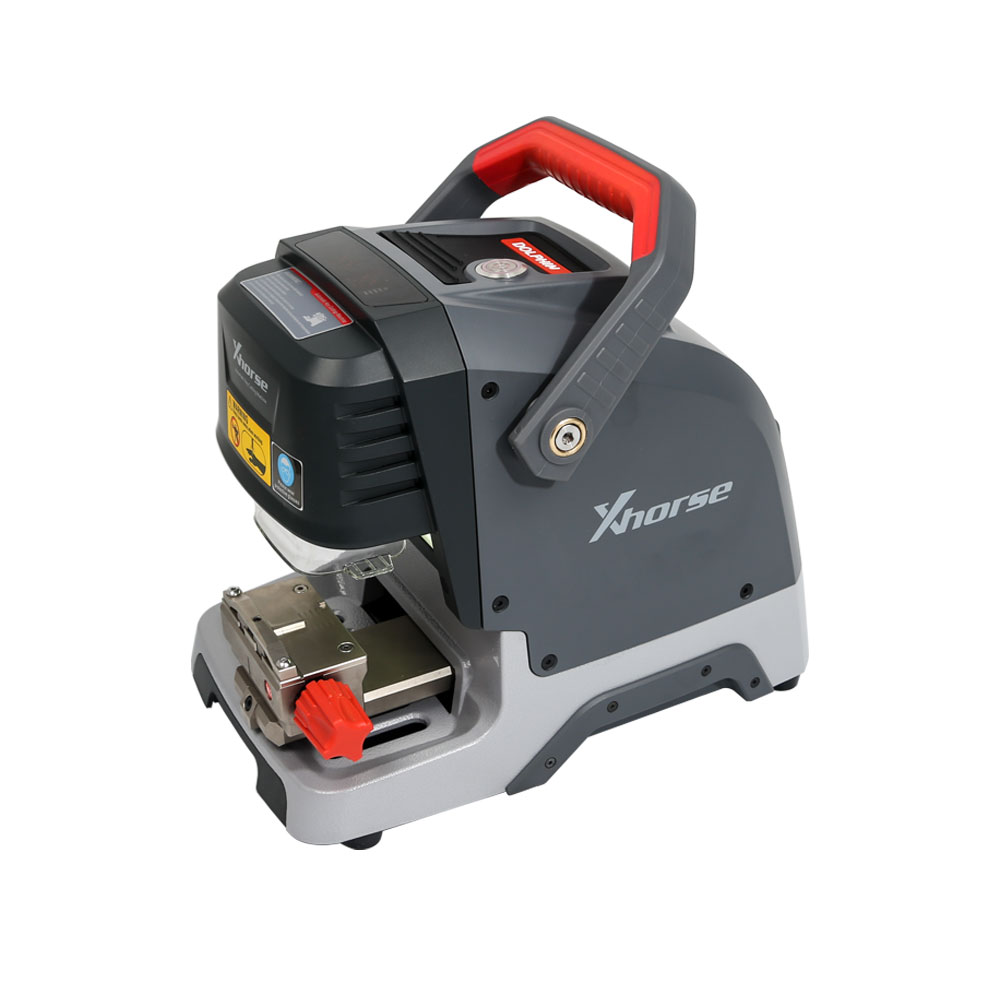

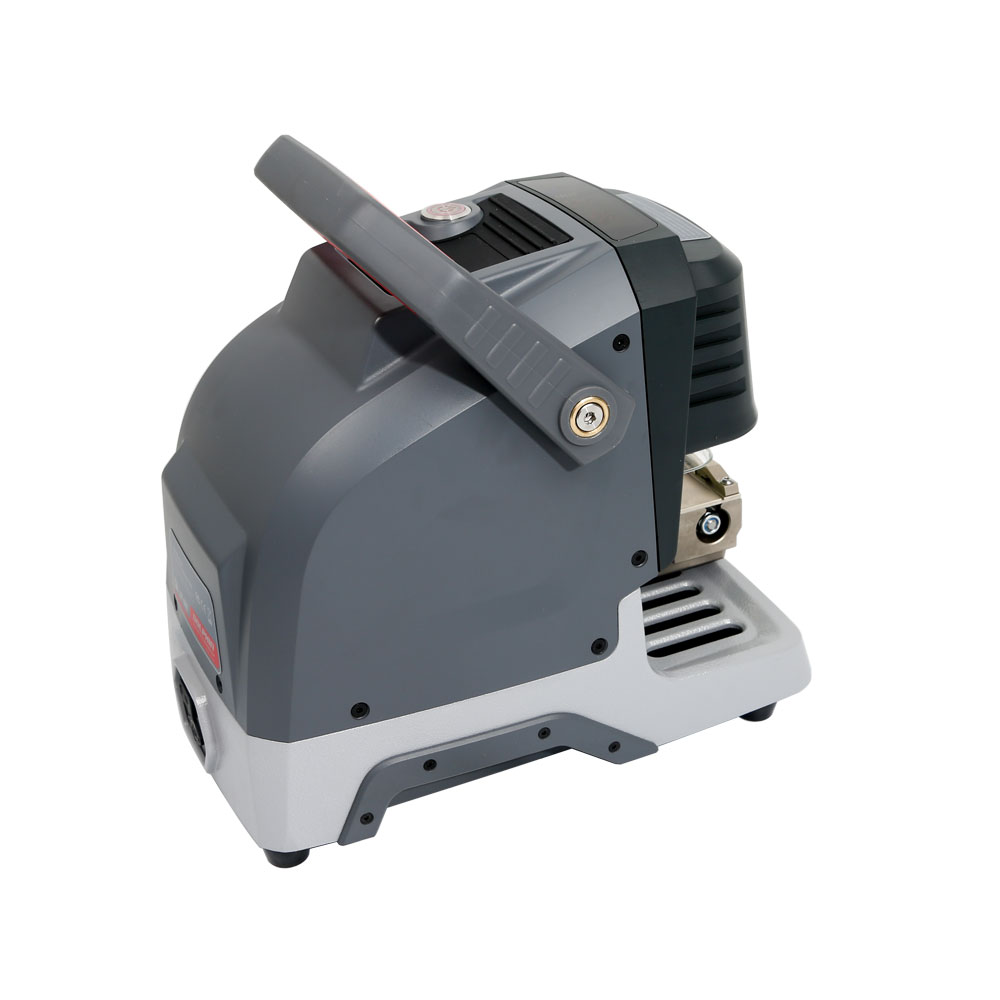

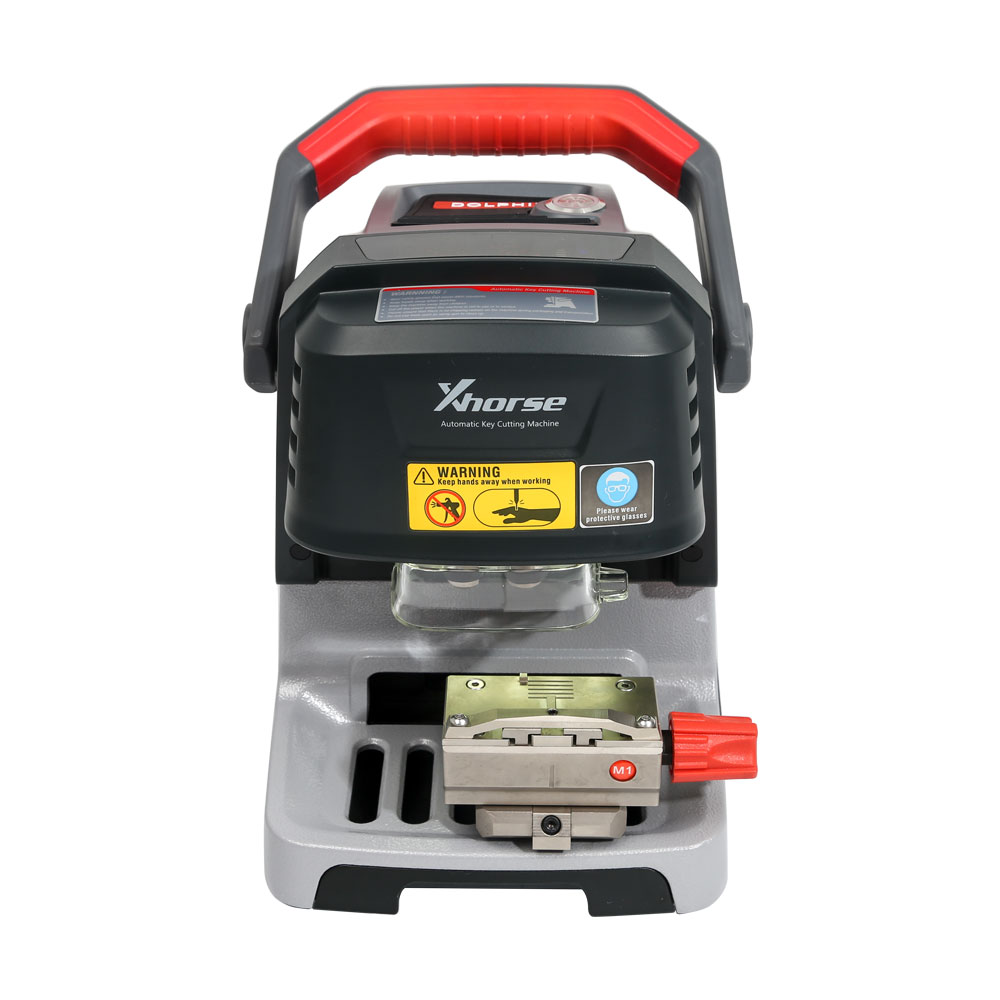

Dolphin XP005 Key Cutting Machine Features:
APP smart cellphone operation
Built-in Bluetooth function, use smart cellphone or tablett to download APP, easy for smart operations
Portable and convenient
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

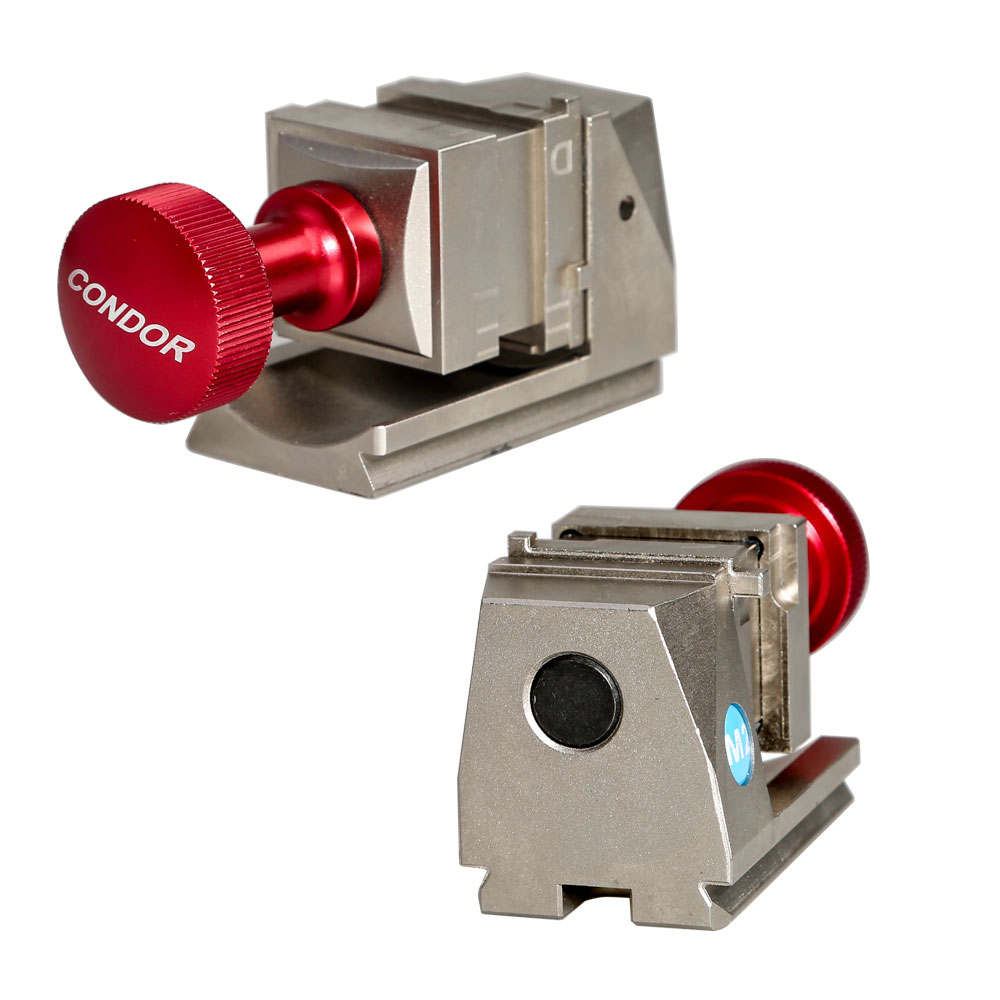

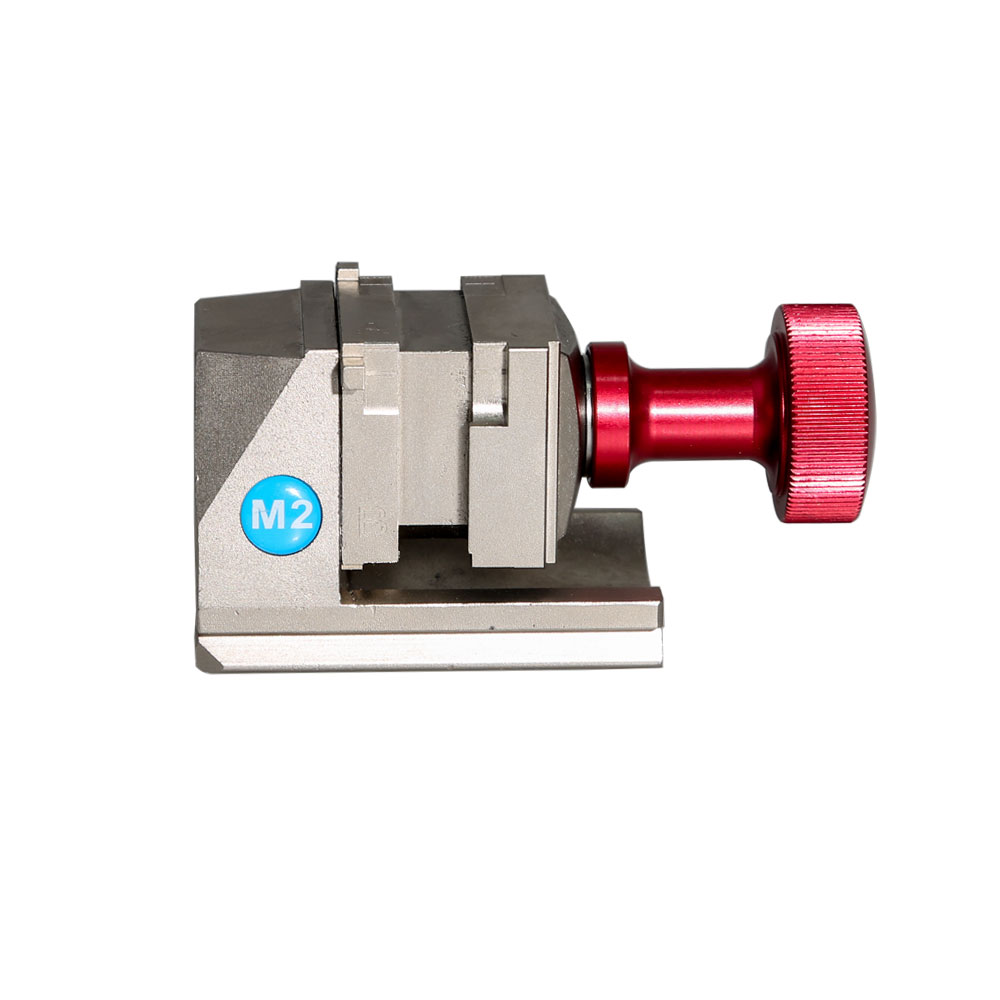

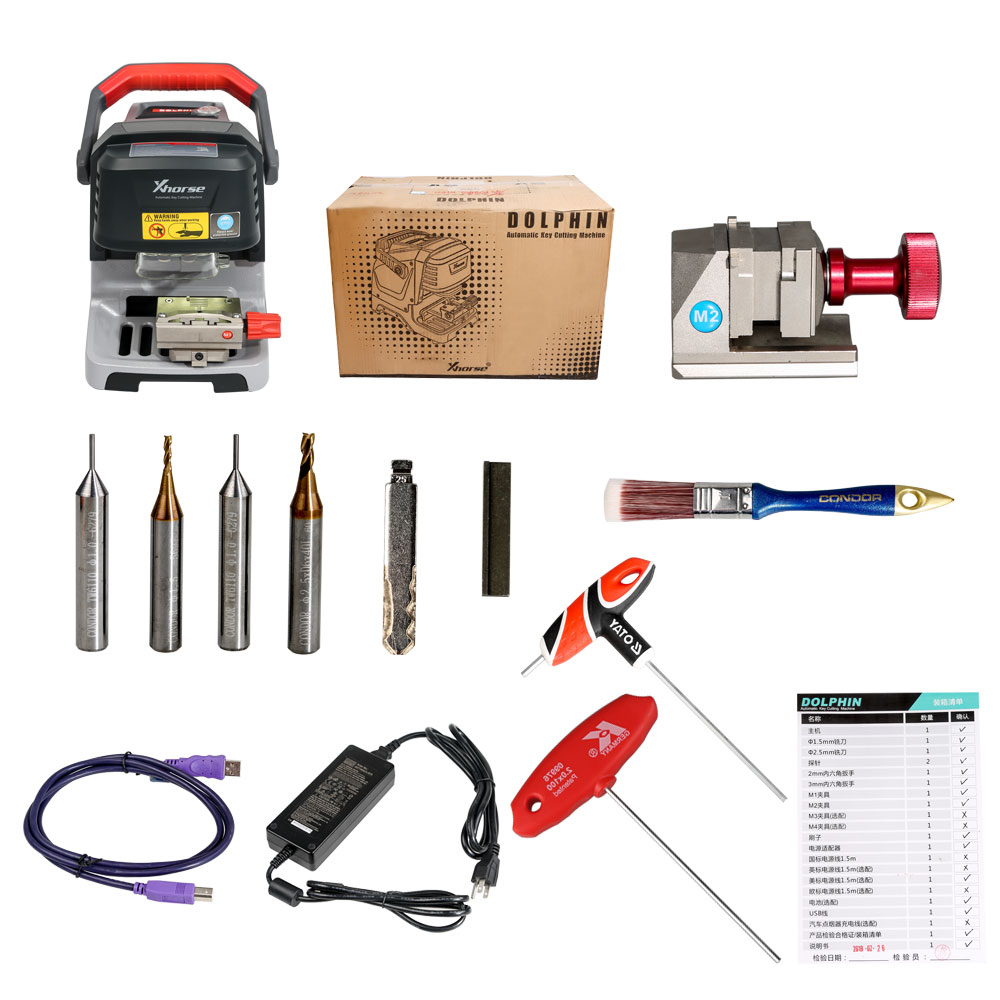

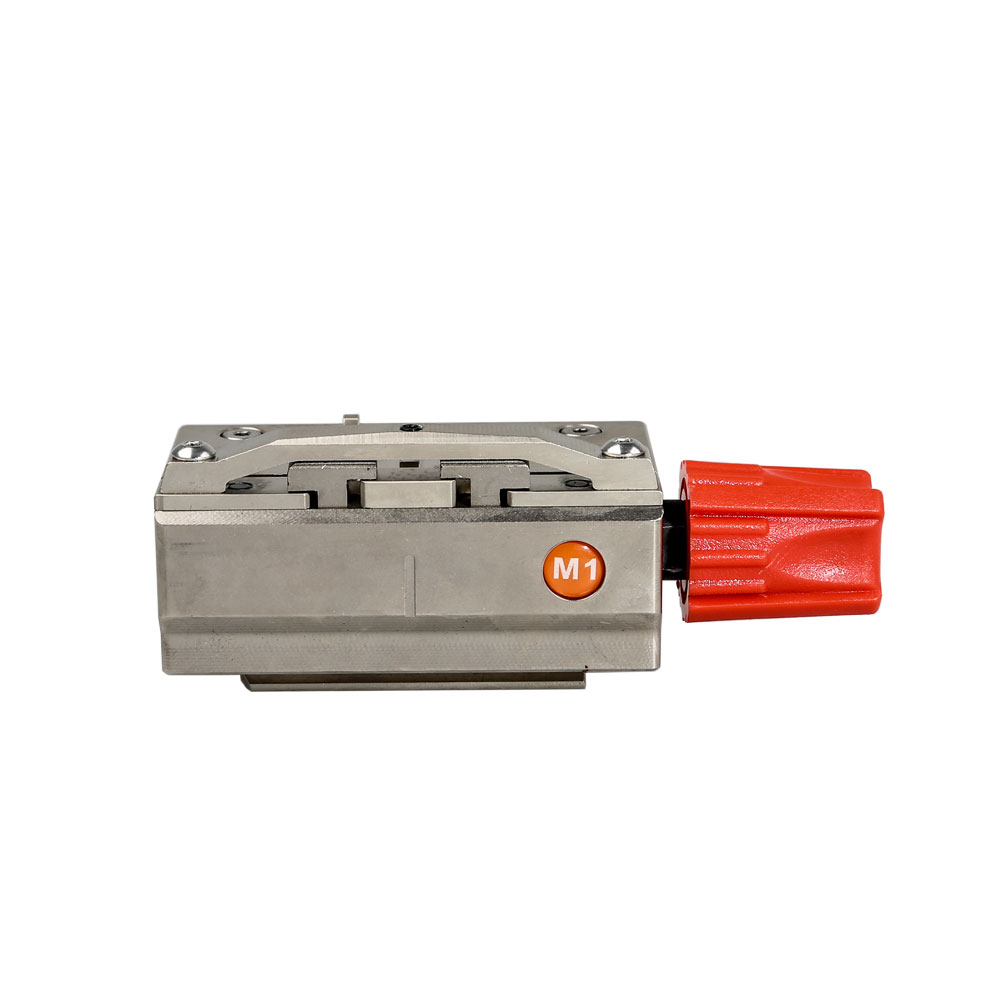

Standard equipped 2 clamps M1 and M2 with powerful function

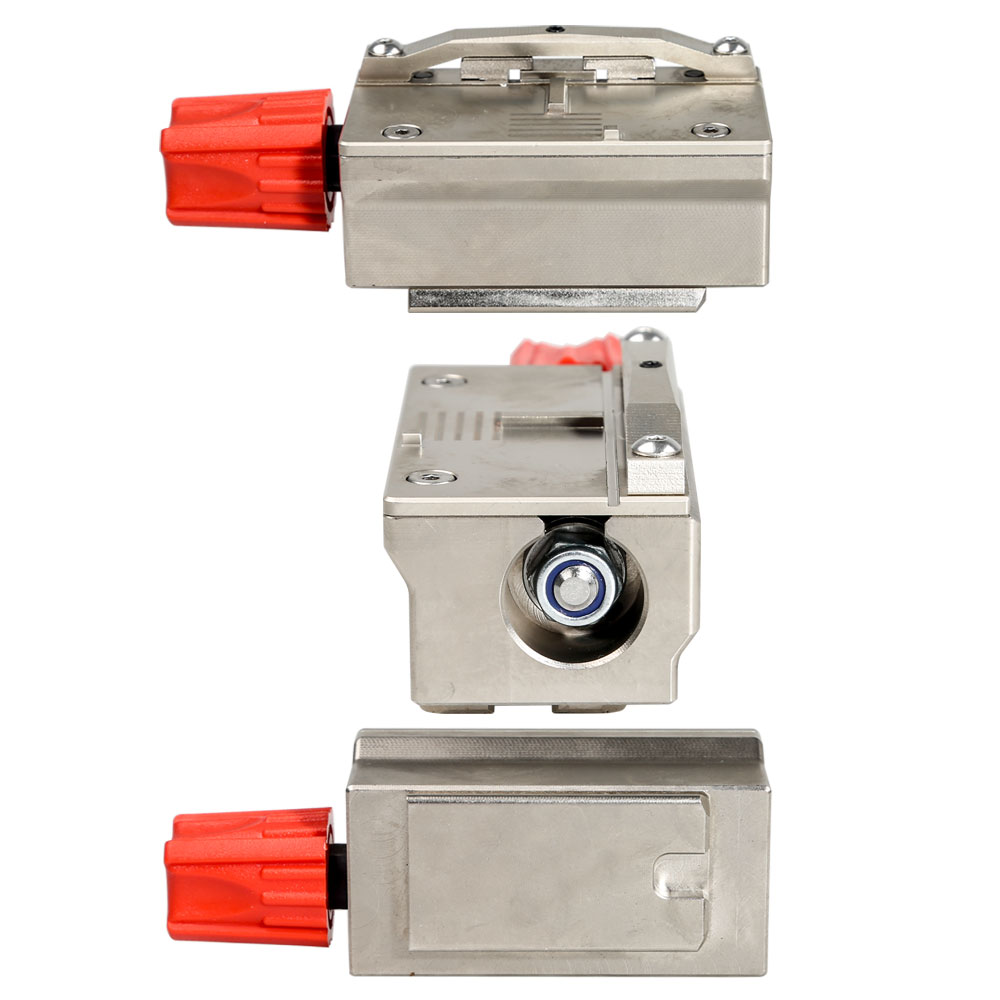

Supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to for Ford FO21 & for Citroen SX9 keys, M4 clamp is applicable to single sided house-key
Manufacture Process
All aluminum body structure, Manufactured by Germany-made DMG CNC machine
American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting
Online update
Free online update software, the latest update information will be released timely, 24hours support server online update, no need to send back for update
Technical service
One-year warranty, free technical support, online service to provide remote control support
Condor Dolphin Key Cutting Machine Parameters:
Working temperature: -10~50℃
Input voltage:12-24V
Battery capacity: 64.75wh
Cutting power: 100W
Standby power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated torque: 0.15 Nm
USB Port: USB2.0
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15kg
Gross Weight: 18kg
Condor Dolphin Key Cutting Machine Parameters:
Condor XC-Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet to install APP and get software Data.
