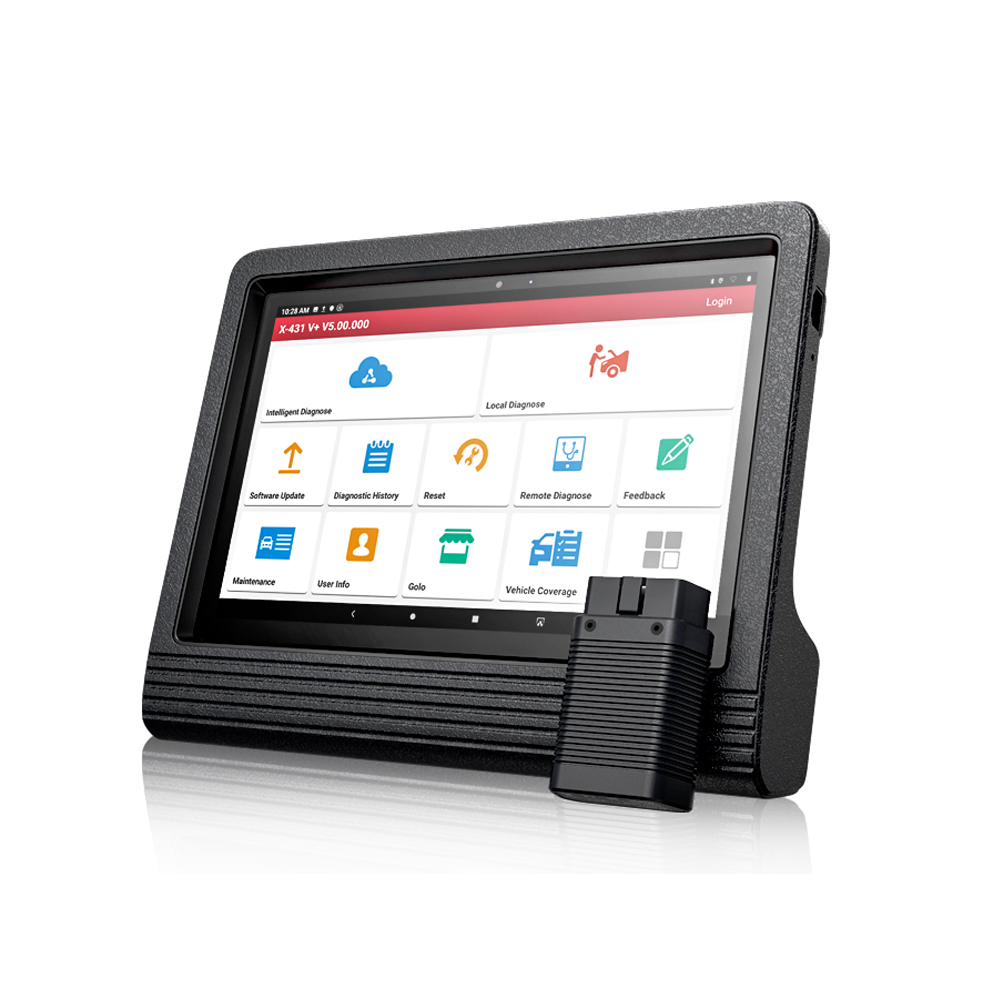

Launch X431 V+ Wifi/Bluetooth Global Version Full System Scanner
Launch X431 V+ V4.0 is a high cost-effective automotive diagnostic device developed based on Android 9.0 System. It adopts Android 9.0 System, 8-core 1.8GHz processor, which runs faster and more stable. It is equipped with DBSCar IV connector as standard, which can be directly inserted into the slot of the host connector, easy to use and not easy to be lost. X-431 V+ V4.0 can cover more than 98% of the car models in the market, realize the fault diagnosis of the whole system, and has many advantages such as strong diagnosis function and accurate test data.
Launch X431 V+ V4.0 Features:
1. Extensive vehicle coverage, powerful diagnostic functions, and precise test result.

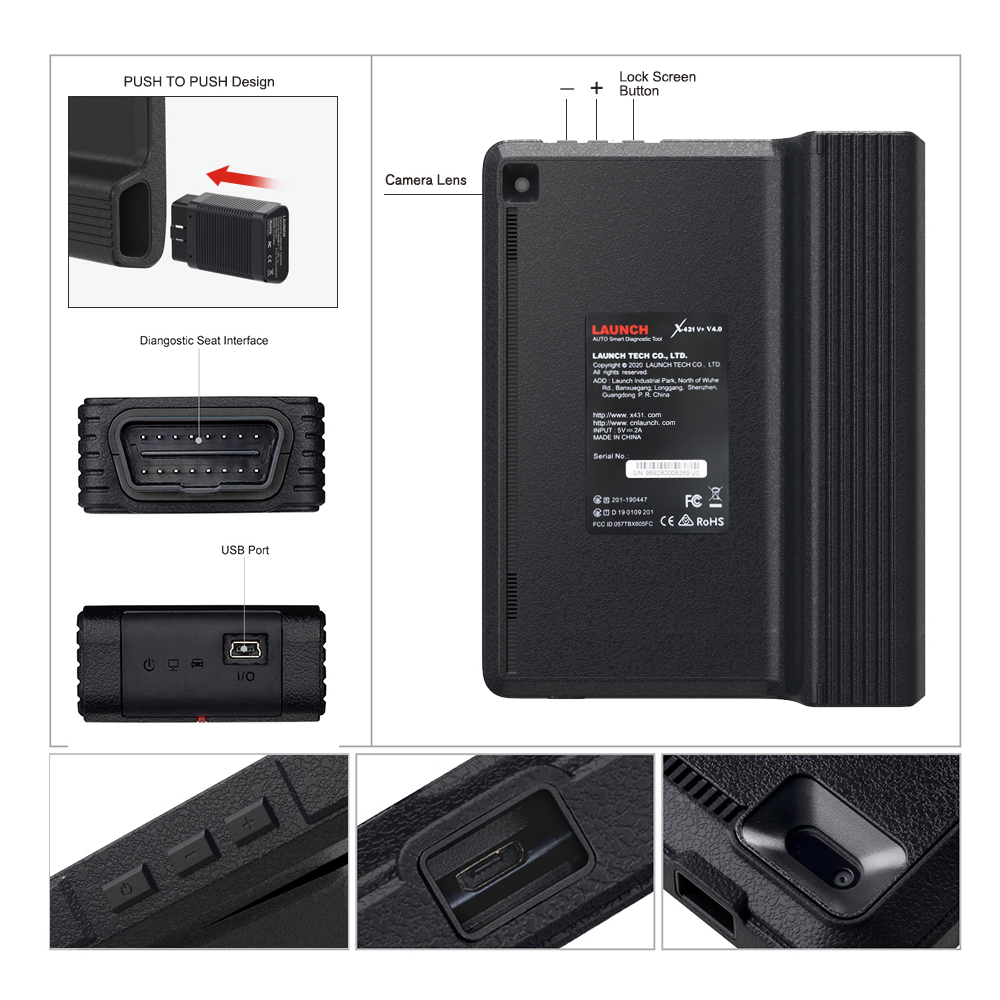

2. Equipped with DBSCar IV connector as standard, which can be directly inserted into the slot of the host connector, easy to use and not easy to be lost.
3. Adopts Android 9.0 System, 8-core 1.8GHz processor, which runs faster and more stable.
4. One-click update via Wi-Fi,Two Years Free Update Online.
5. Supports remote diagnosis.
6. Supports frequently 15 used special function.
7. Supports expansion module: endoscope, immobolizer programmer and Wi-Fi printer. (purchased separately)
8. Supports Multi-language: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Arabic, Traditional Chinese, etc.
9. Launch X431 V+ Universal Car Diagnostic Scanner can work with Launch X431 HD III Box to support 24V trucks.
Launch X431 V+ V4.0 Functions:

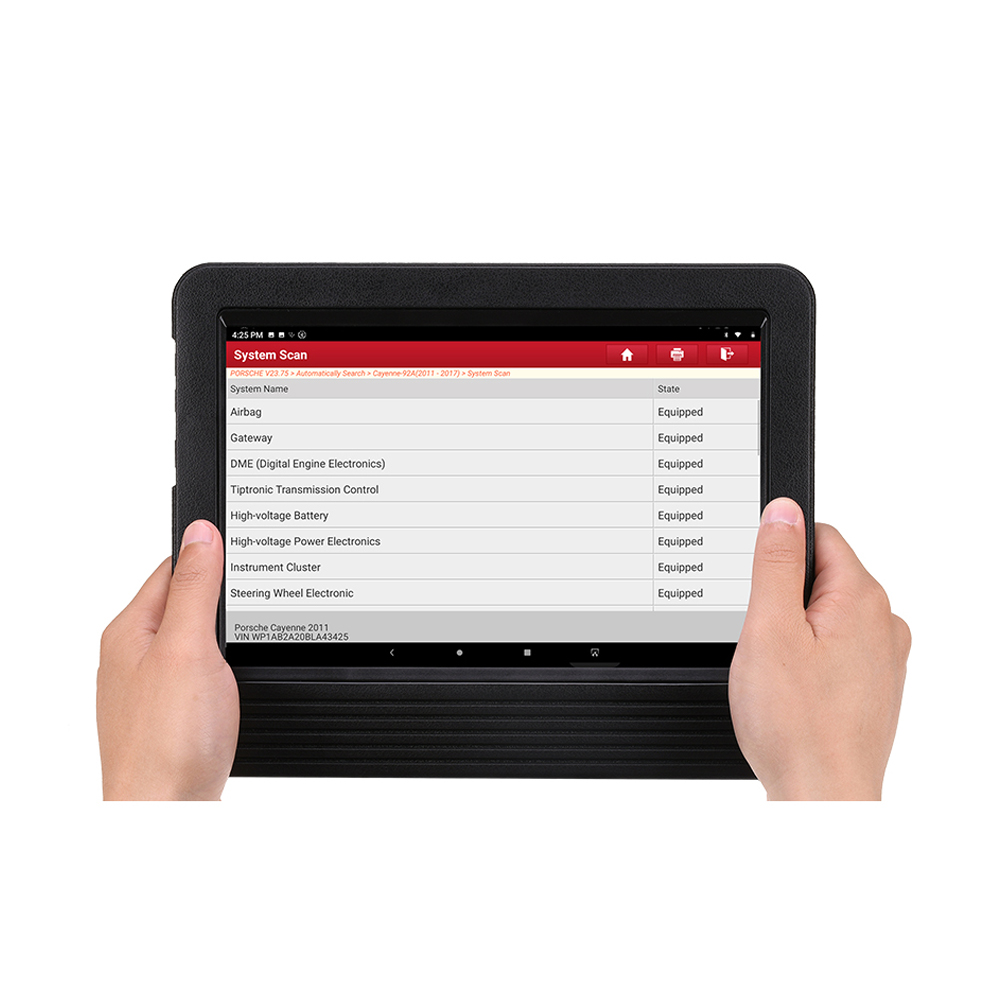

1. Automatically identify VIN upon connection to the vehicle for intelligent diagnosis.
2. Read all OTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions.
3. Guided function for Volkswagen and Audi.
4. Supports frequently 15 used special functions, including throttle adaptation, steering angle reset, brake reset, tire pressure system reset, anti-theft matching, ABS bleeding, battery matching, gear learning, injector coding, DPF regeneration, sunroof initialization, headlamp matching, suspension matching and AT matching.
5. Support expansion module: endoscope, immobolizer programmer and Wi-Fi printer.
6. One-key Upgrade: Once there is a new software version , the system will promptly remind the user to upgrade the version , for which one-key upgrade operation is supported.
7. Diagnostic records and reports can be stored in the cloud without any concern of data missing.
8. Support the query of maintenance data and testable car models.
Tablet Parameters( X-431 V+ V4.0):
CPU: 1.8GHz 8-core
Operation System: Android 9.0
RAM: 3GB
ROM: 32G
Screen: 10.1 inch 1920*1200 IPS Touch Screen
Battery: 7000mAh rechargeable polymer lithium battery
Camera:5MP(Front), 8MP(Rear)
Wi-Fi: 2.4GHz/5GHz （Dual frequency）
Working Temperature: 0~50℃
Size: 265*214.5*50.5 (mm
VCI Parameters( DBSCar IV):
Test Voltage: DC 9~18V
Diag. Communication: Bluetooth
Working Temperature: 0~50℃
Dimension:72*47*24 (mm)

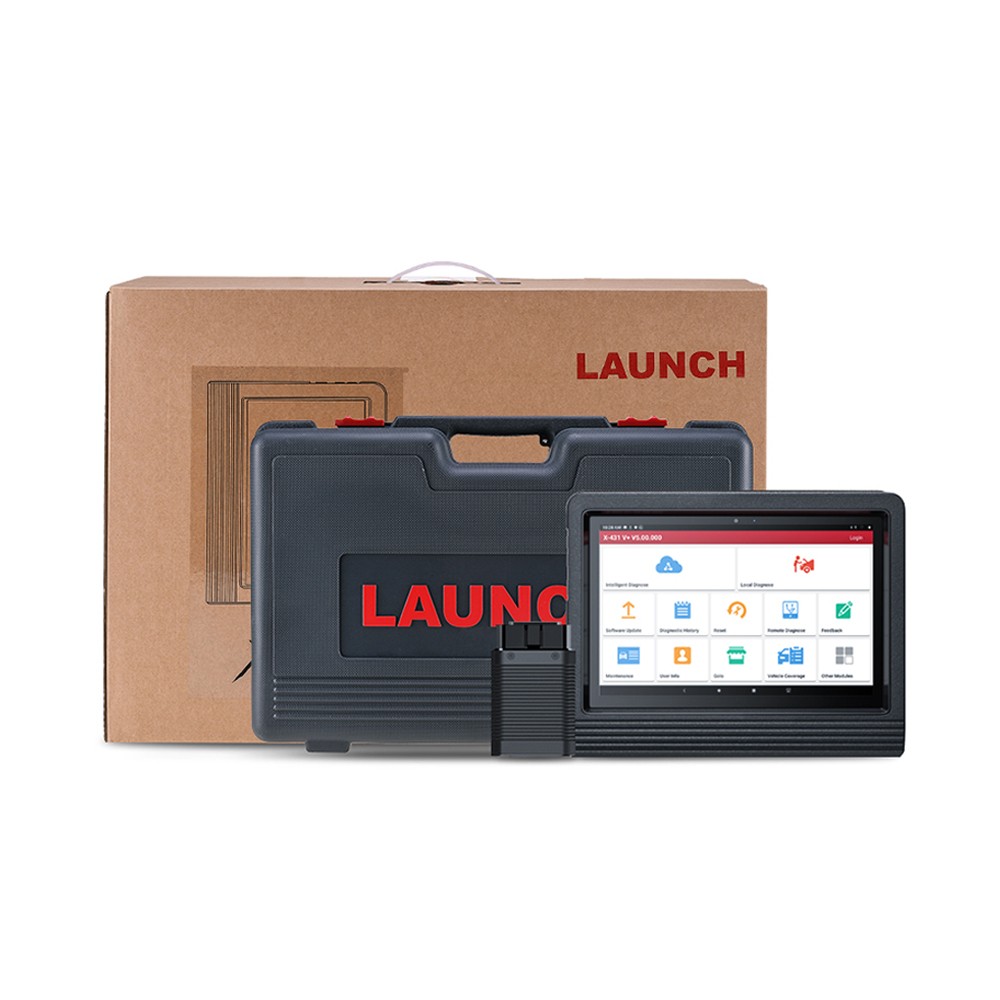

Package including:
-
1pc X X431 V+ American host
1pc X OBDII -16 extension cable
1pc X OBD I Adaptor BOX switch wiring
1pc X LIGHTER
1pc X CLIPPER
2pcs X Lighter fuse 6*30mm
4pc X Clipper fuse 5*20mm
1pc X 32G MicroSD card
1pc X X431 PIN envelope
1pc X DBScar IV connector
1pc X BENZ-38 connector
1pc X DAEWOO-12 connector
-
1pc X AUDI-4 connector
1pc X BENZ-14 connector
1pc X BMW-20 connector
1pc X CHRYSLER-6 connector
1pc X DAIHATSU-4 connector
1pc X FIAT-3 connector
1pc X FORD-6+1 connector
1pc X GAZ connector
1pc X SSANGYONG-14 connector
1pc X GM/VAZ-12 connector
1pc X HONDA-3 connector
-
1pc X KIA-20 connector
1pc X MAZDA-17 connector
1pc X MITSUBISHI/HYUNDAI-12+16 connector
1pc X NISSAN-14+16 connector
1pc X GEELY-22 connector
1pc X SSANGYONG-20 connector
1pc X SUBARU-9 connector
1pc X SUZUKI-3 connector
1pc X TOYOTA-17 connector
1pc X TOYOTA-22 connector
1pc X UNIVERSAL-3 connector
